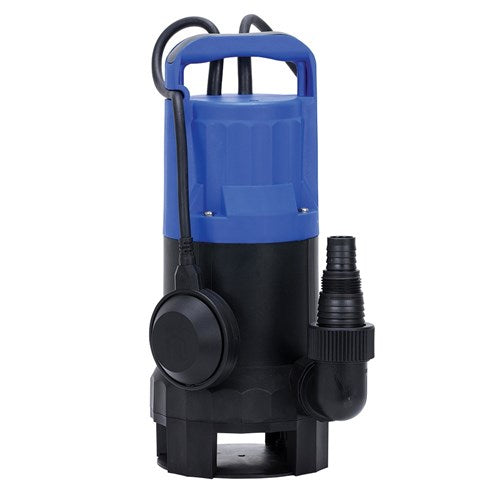

Vortex Drainage Submersible Pump with float

Description

The Bianco SUB550 is a light-duty, occasional-use vortex-style pump

The generous internal clearances enable this pump to cope with lightly contaminated water containing soft solids such as leaves or other non-abrasive organic materials

If you have a general de-watering task, the SUB550 is a great choice

Benefits

• Light and compact - easy to use
• Great value pump for light duties and occasional use
• Automatic operation controlled by a flexible float

Features:

• Quality pump materials and construction to ensure reliable operation
• Multi-fit hose tail

Cautions

• Not intended for continuous operation such as water features
• Not suitable for potable water applications
• Not suitable for use with biological wastewater

Specifications

Rated Power: 550W
Maximum Flow Rate: 265 L/min
Rated Flow Rate: 8 m³/h
Maximum Head: 8 m
Operating Temperature: < 40°C
Liquid Temperature Range: 2°C – 35°C
Maximum Immersion Depth: 7 m
Maximum Particle Diameter: < 35 mm
Motor Duty: Continuous (S1)
Motor Insulation Class: Class F
Motor Protection: Auto-resetting thermal overload
Capacitor: 10 µF
Motor Shaft: 304 Stainless Steel
Rated Voltage: 220V – 240V, 50 Hz
Rated Current: 2.7 A @ 230V
Power Cable Length: 10 m
Protection Class: IPX8
Impellers: Single, glass-reinforced nylon (25%)
Pump Body: Glass-reinforced polypropylene (30%)
Inlet Strainer: Open
Outlet Connection: 1 ½” BSP
Seal Type: Lip seal
Float Switch: Flexible float mechanism for automatic operation
Net Weight: 4.9 kg (pump only)
Dimensions: 180 (W) x 306 (H) mm

Warranty 2 Years
